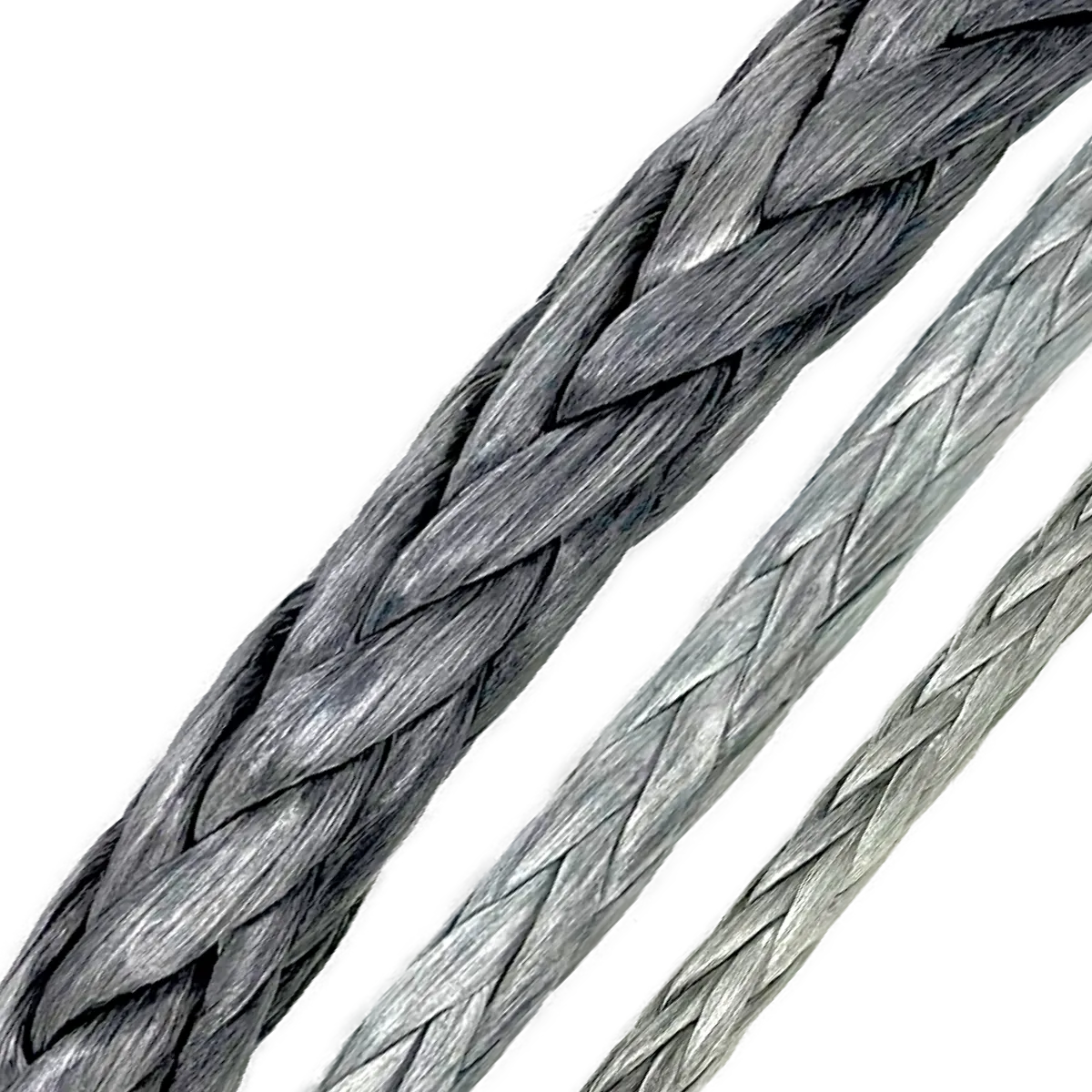

Dynatech JX
Properties:
- Density: 0.97 g/cm³
- Melting Point: 140 °C
- Elongation at Break: approx. 3%
- Abrasion Resistance: Very high
- UV Resistance: Very high
- Water Absorption: Very low
Applications:
- Manure handling ropes
- Ship mooring lines
- Towing lines
- Lifting & pulling
- Rope for fishing industry
- Rigging lines
Visit our webshop, ropestore.com:
Buy at ropestore.com(opens in a new tab)Contact us with an inquiry
Contact usAnimal keeping, Agriculture, Industry & Infrastructure, Commercial shipping, Pleasure boats & Maritime ropes, Braided rope
Description
Dynatech JX is the ultimate rope for those demanding exceptional strength, minimal stretch, and superior performance. Featuring a pure HMPE core treated with a specially developed coating impregnation, this rope offers outstanding protection against abrasion and harmful UV rays, significantly extending its lifespan.
Material and properties: Dynatech JX is crafted with a 12-braided construction in all diameters, ensuring a smooth and stable structure. The pure HMPE core provides remarkable strength and durability, while the special coating enhances protection against wear and UV exposure. The rope is 70% stronger than steel wire while being significantly lighter, delivering unmatched performance in challenging conditions.
Applications: Dynatech JX is versatile and suited for a variety of demanding uses, including:
- Rigging Lines: Ideal for standing rigging on modern sailboats, offering precision, low weight, and minimal stretch for optimal performance.
- Industrial Lifting Ropes: Perfect for industries requiring ropes capable of handling demanding lifting and pulling tasks.
- Mooring Lines: Suitable for use as mooring lines, offering strength and ease of splicing.
- Winch Ropes: An excellent choice for winches in both industrial and agricultural applications.
Advantages: Dynatech JX is a revolutionary rope that combines unparalleled strength, low stretch, and lightweight properties. Its exceptional performance makes it a reliable choice for marine environments, industrial tasks, and extreme sports. Offering durability, precision, and ease of use, Dynatech JX sets a new standard in rope performance.
Specification
| Diameter [mm] | Weight [g/m] | MBL [kp] |
|---|---|---|
| 5 | 16 | 2500 |
| 6 | 22,5 | 3700 |
| 8 | 41 | 6600 |
| 9 | 56 | 8200 |
| 10 | 63 | 9500 |
| 12 | 90 | 15100 |
| 14 | 125 | 20000 |
| 16 | 175 | 26000 |
| 20 | 290 | 35000 |
MBL: minimum breaking load. Stated breaking loads apply to new rope.
