Polyamide
Properties:
- Density: 1.14 g/cm³
- Melting Point: 220-250 °C
- Elongation at Break: about 40%
- Abrasion Resistance: Very high
- UV Resistance: Very high
- Water Absorption: Medium
Applications:
- Reinforcement lines (edge lines) for safety nets
- Safety lines (where good elasticity and shock absorption are desired)
- For certain applications in the rubber industry
Visit our webshop, ropestore.com:
Buy at ropestore.com(opens in a new tab)Contact us with an inquiry
Contact usLaid rope, Industry & Infrastructure, Construction, Commercial shipping
Description

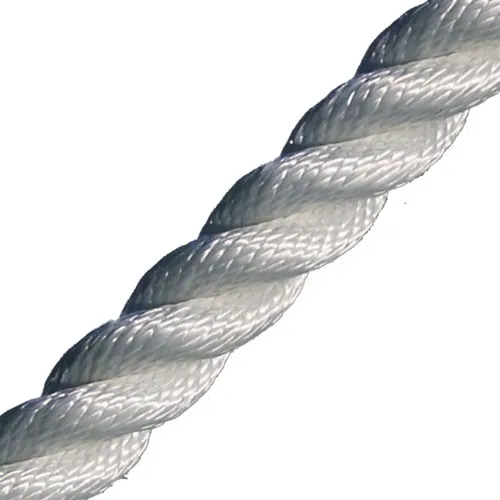

Polyamide is a 3-strand rope that offers excellent properties for a variety of applications.
Material and properties: Polyamide is a versatile fiber, mostly known for it’s elasticity properties.
- Nylon: “nylon” is another word for polyamide and these ropes are made of 100% polyamide multifilament, which is a thermoplastic polymer with outstanding strength and elastic properties, as well as high UV resistance properties.
- High strength: Compared to polyester rope, which has a similar appearance, polyamide has higher tensile strength, is lighter and has greater elongation capability, providing excellent shock absorption.
- Elastic: Polyamide is a very elastic fiber which makes these ropes absorb shock and dampen the effect of quick jerks, that can otherwise be harmful to other types of fibers.
Applications: Polyamide is a versatile rope used in various applications where its unique properties are beneficial. Examples of applications include:
- Reinforcement lines (edge lines) for safety nets: The rope can be used as reinforcement in safety nets, where its high tensile strength and elasticity are valuable properties.
- Safety lines: Where good elasticity and shock absorption are required, such as in certain safety applications like fall protection, etc.
Advantages: Polyamide offers the benefits of high tensile strength and elasticity, making it ideal for situations where ropes or lines must withstand heavy loads and shock stresses.
Polyamide is a 3-strand polyamide multifilament rope with excellent strength properties, elasticity and good UV resistance. Its ability to handle shock loads makes it an excellent choice for various safety-related applications and other situations requiring high performance.
Specification
| Diameter [mm] | MBL [kp] | Weight [g/m] |
|---|---|---|
| 6 | 735 | 22 |
| 8 | 1300 | 40 |
| 10 | 2040 | 62 |
| 12 | 2940 | 89 |
| 14 | 4020 | 122 |
| 16 | 5200 | 158 |
| 18 | 6600 | 200 |
| 20 | 8100 | 245 |
| 24 | 11800 | 355 |
| 28 | 15500 | 485 |
| 32 | 19600 | 630 |
MBL: minimum breaking load. Stated breaking loads apply to new rope.
