Thimbles are used to create a protected and durable loop at the end of a rope. There are many different types of thimbles and they come in a variety of materials. Below are some examples:

• Open thimble: Open, drop-shaped thimbles are the most common type. They resemble halved tubes and are bowl-shaped to accommodate the rope and to provide an even load-bearing surface within the loop.
• Tubular thimble: Tubular thimbles are more robust and partially closed. Since they are not fully open, they stay attached to the rope and are less likely to come loose or bend out of the loop under heavy load.
• Round thimble: Fully open and round thimbles. They can be compared to a rim.

Materials and properties: Thimbles come in a variety of materials such as galvanized steel, stainless steel, brass, plastic and wood.

Applications: The different types of thimbles, combined with the material they are made of, are used in various applications depending on a number of factors. Below are some examples:

• Lifting & pulling: To attach, for example, a shackle or a hook to the end of a rope, a thimble is needed. For very heavy lifts, tubular thimbles are typically used, while for lighter pulls, an open thimble may suffice.
• Mooring: Boats that are permanently moored to a dock often have a mooring line with a thimble at the end, connected to, for example, a Y-boom, dock ring or mooring loop using a shackle, either in plastic or metal.
• Splicing & connecting: When you need to combine different types of materials in a series connection, such as buoy or dock moorings with rope for part of the length and chain for the rest, thimbles are used to ensure that the materials do not wear each other out. A galvanized thimble at the end of the rope becomes the link between the rope and the galvanized chain, for example.

Advantages: When it is not enough to simply tie or splice a loop to attach something to the end of the rope, thimbles are highly useful. They protect the rope from abrasion effectively. They also help distribute pressure and load within the loop, reducing stress on the rope and splice, thereby extending lifespan and increasing the breaking load of the rope and splice.

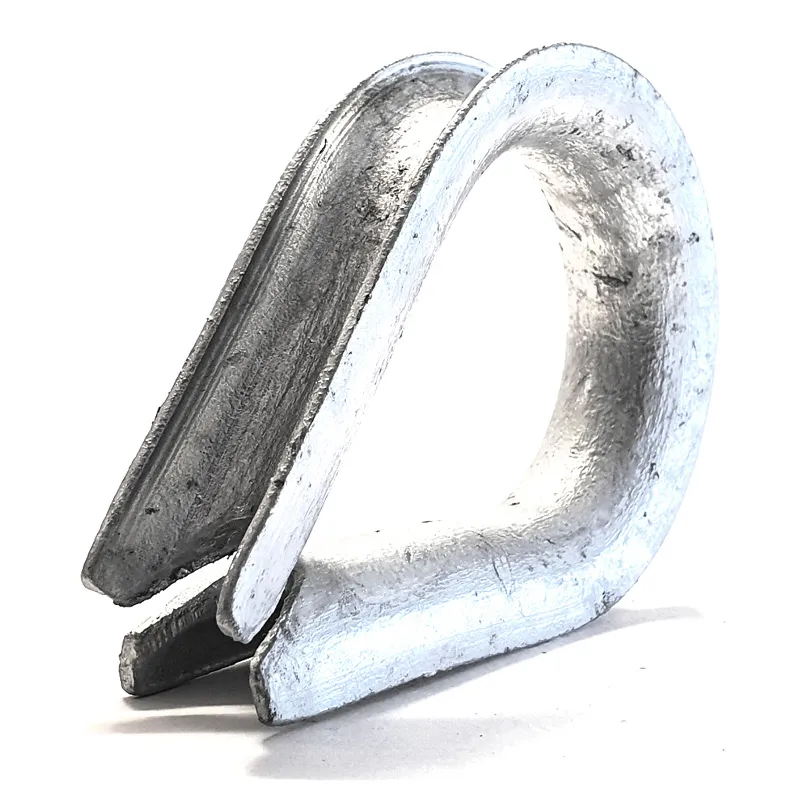

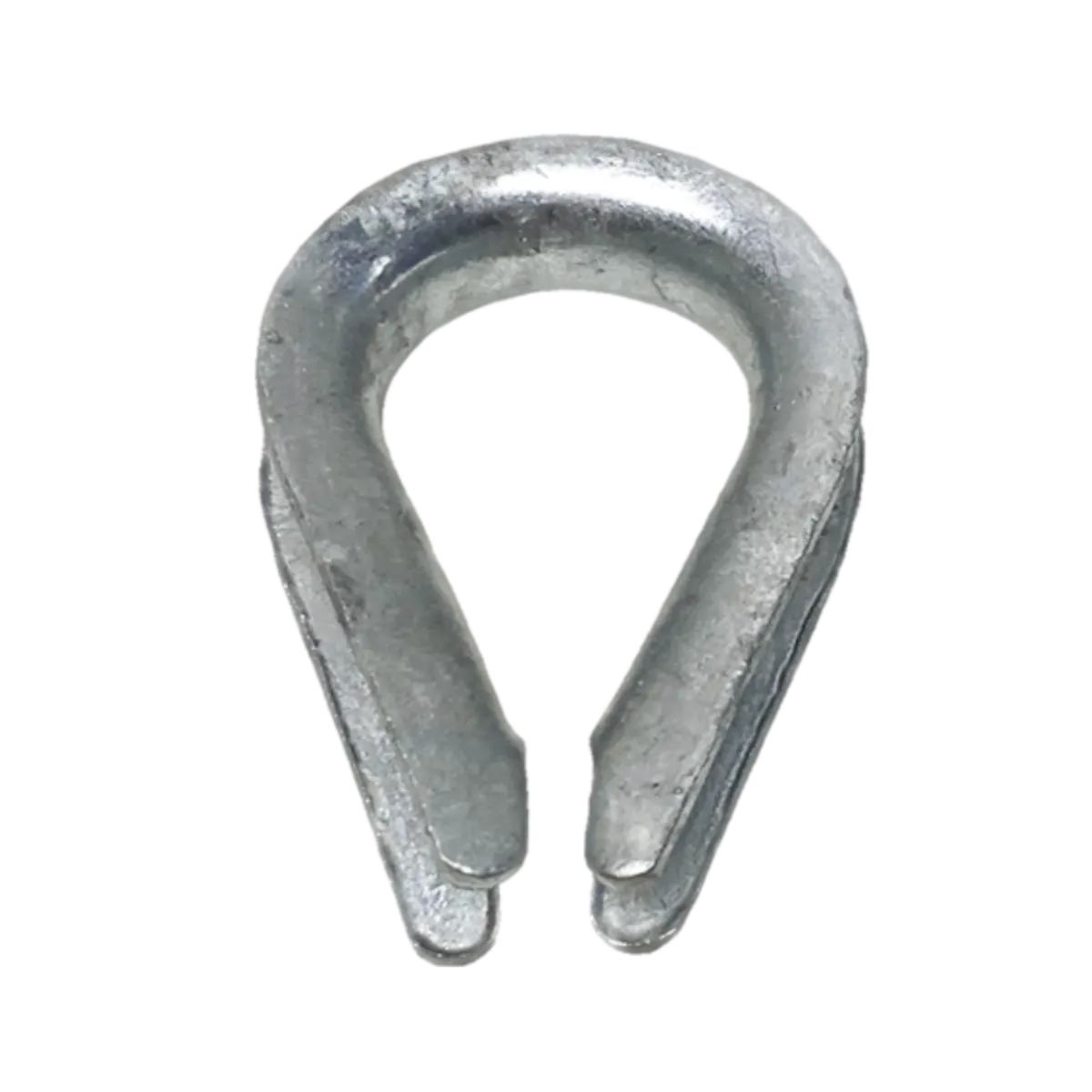

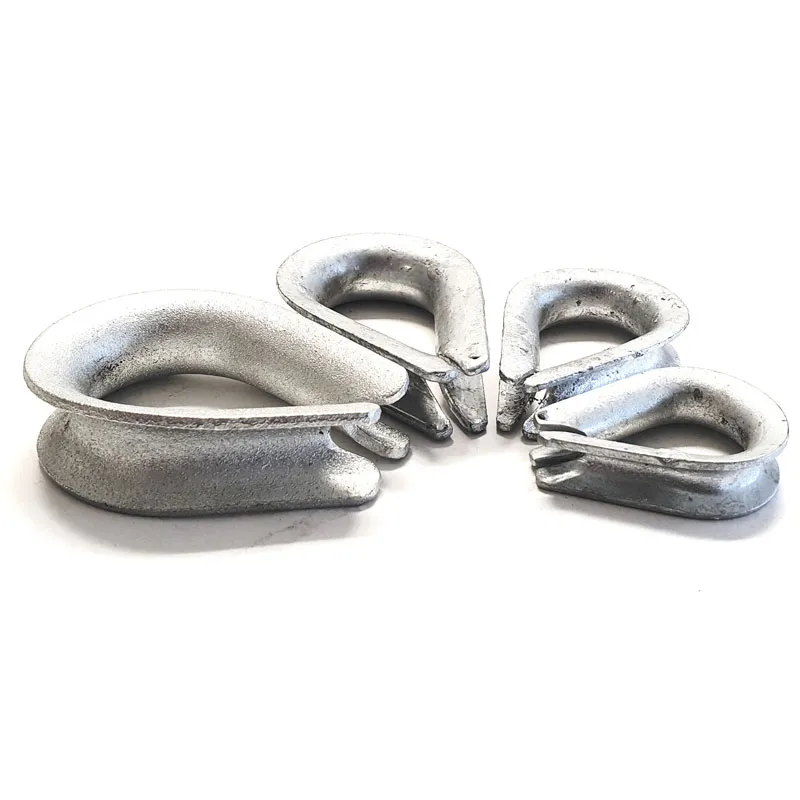

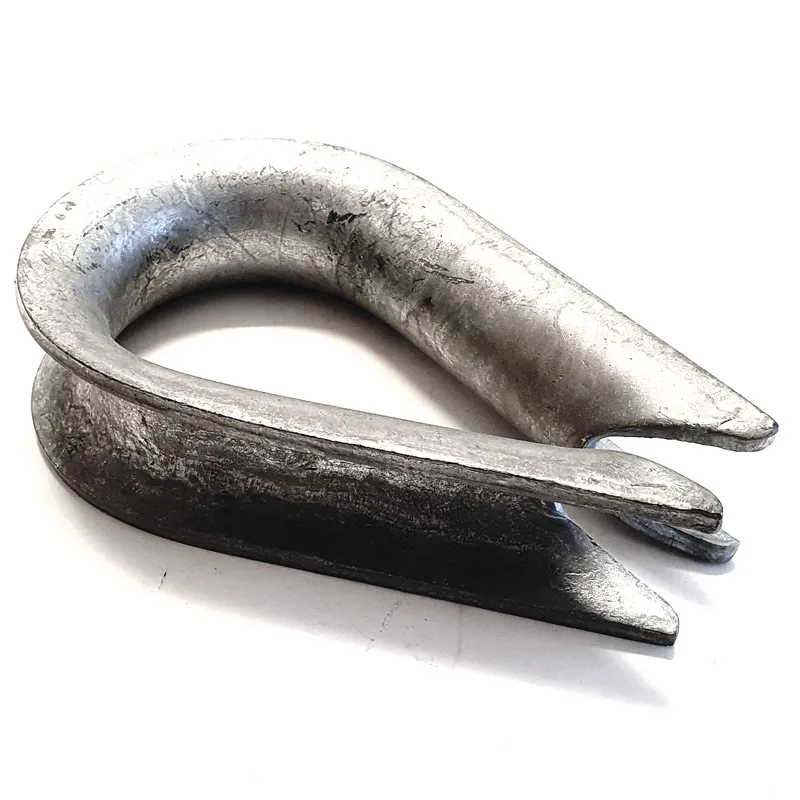

Thimble - galvanized

Open, drop-shaped thimbles made of galvanized steel.

Specification

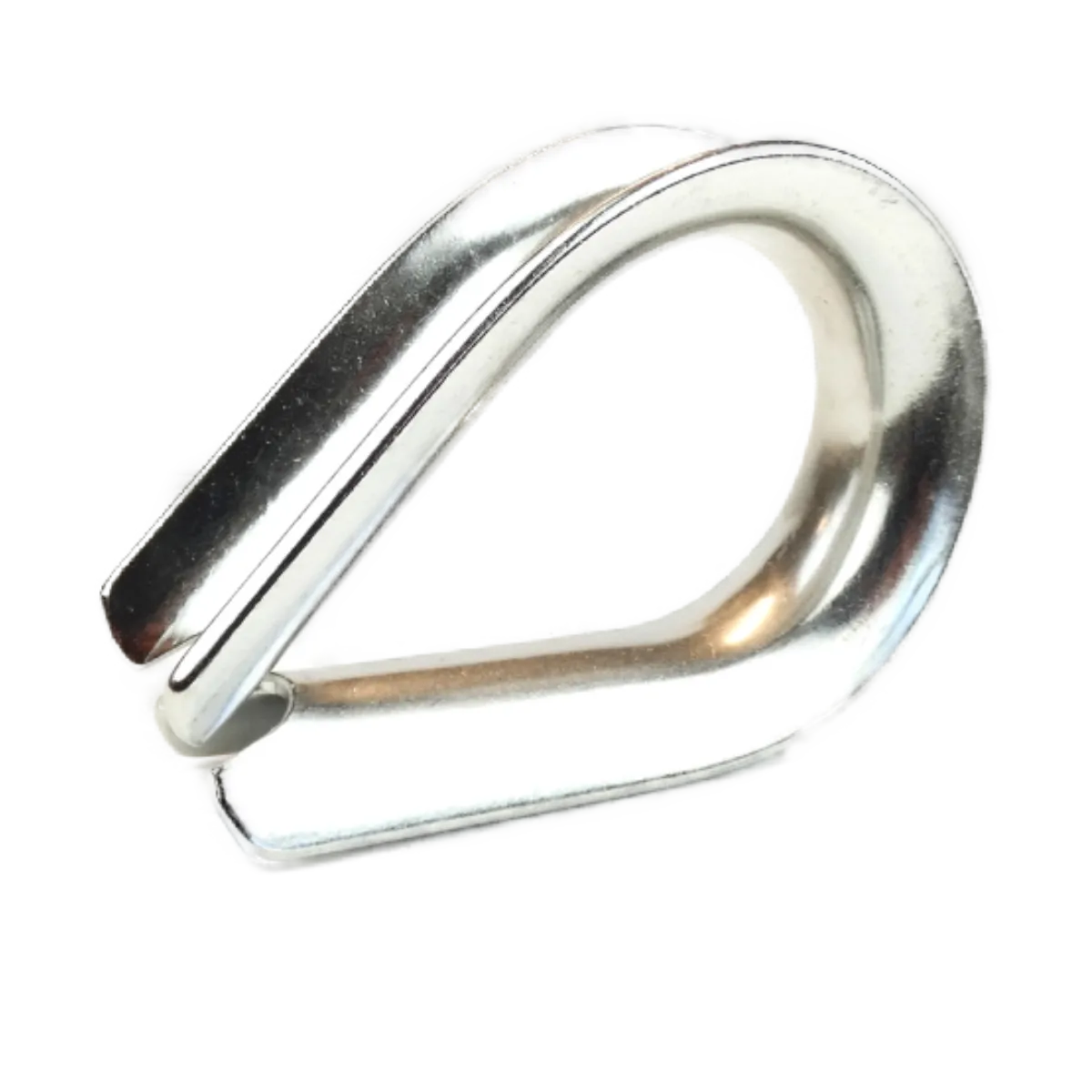

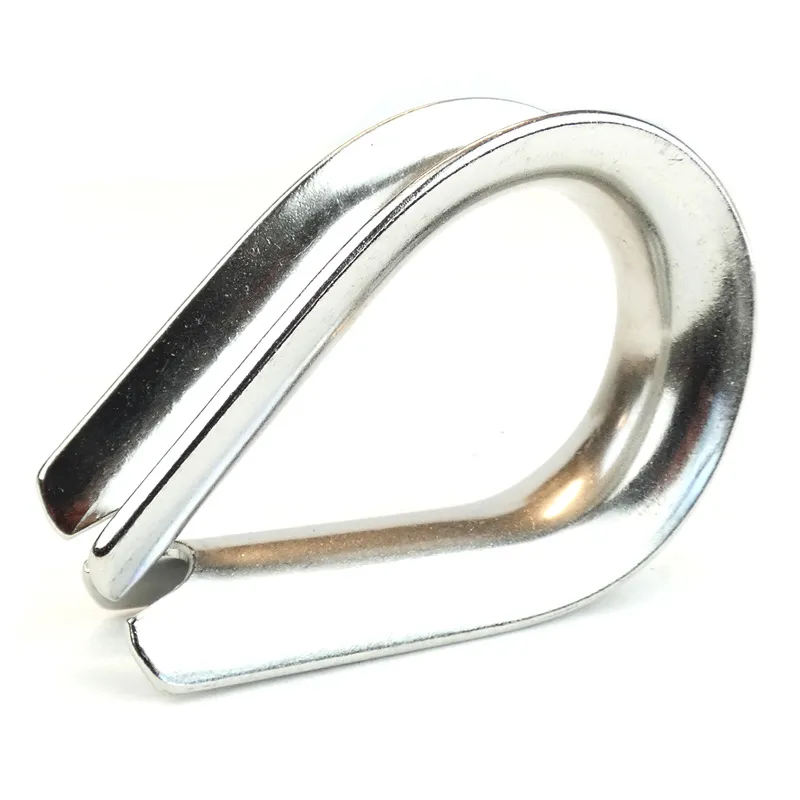

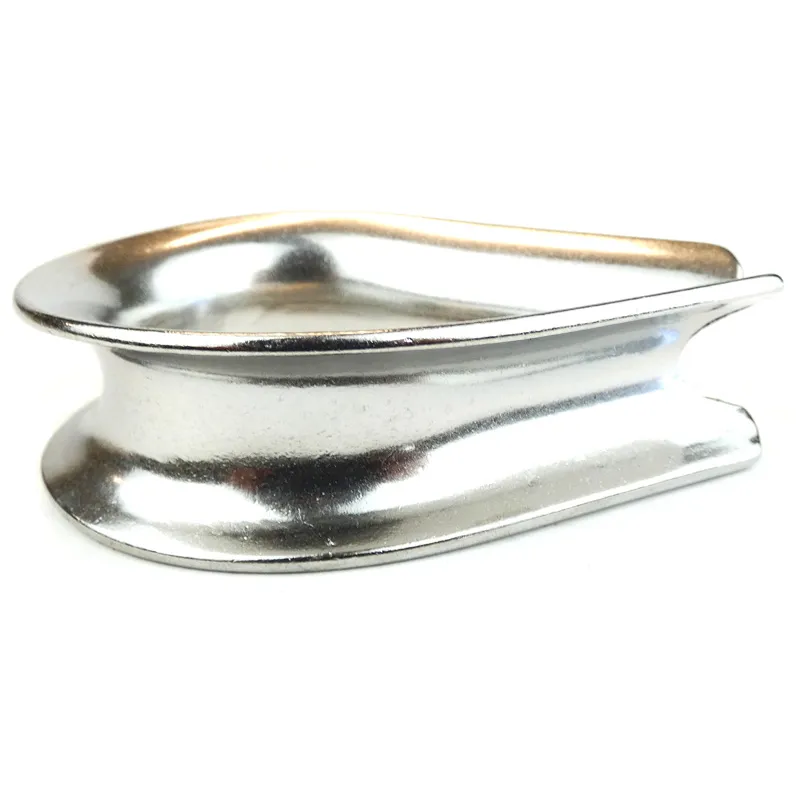

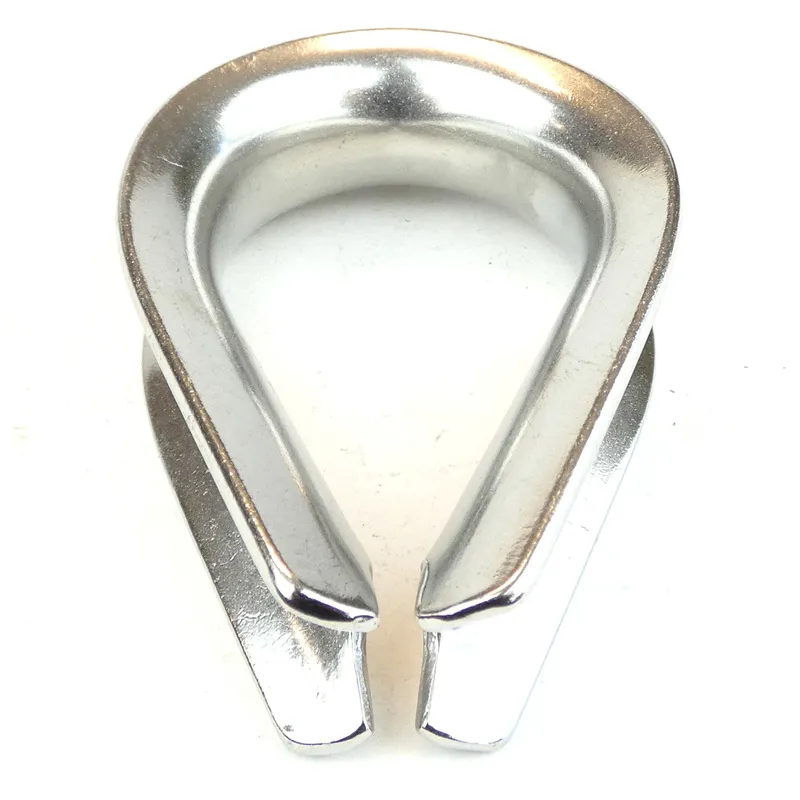

Thimble - stainless steel

Open, drop-shaped thimbles made of stainless steel.

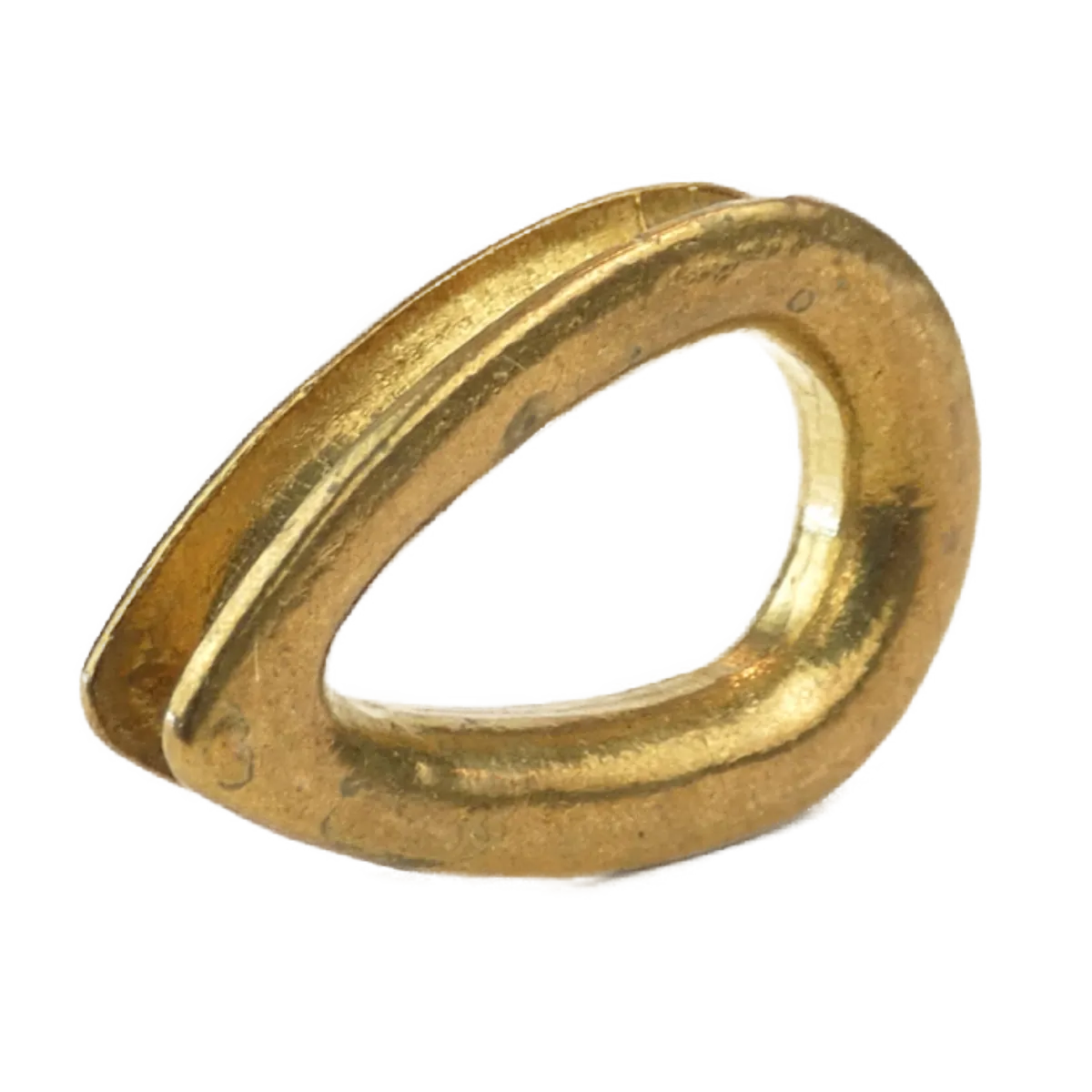

Thimble - brass

Open, drop-shaped thimbles made of brass.

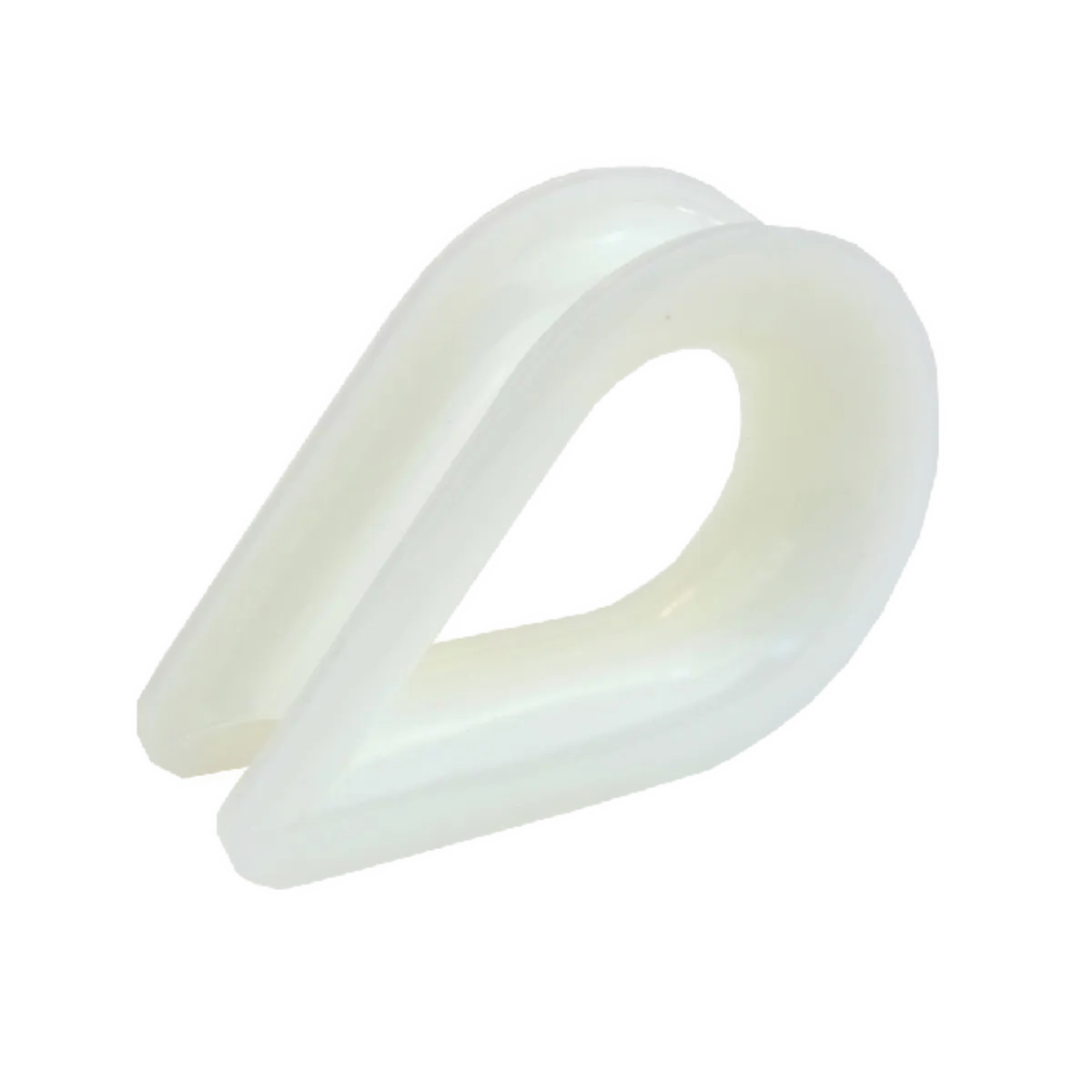

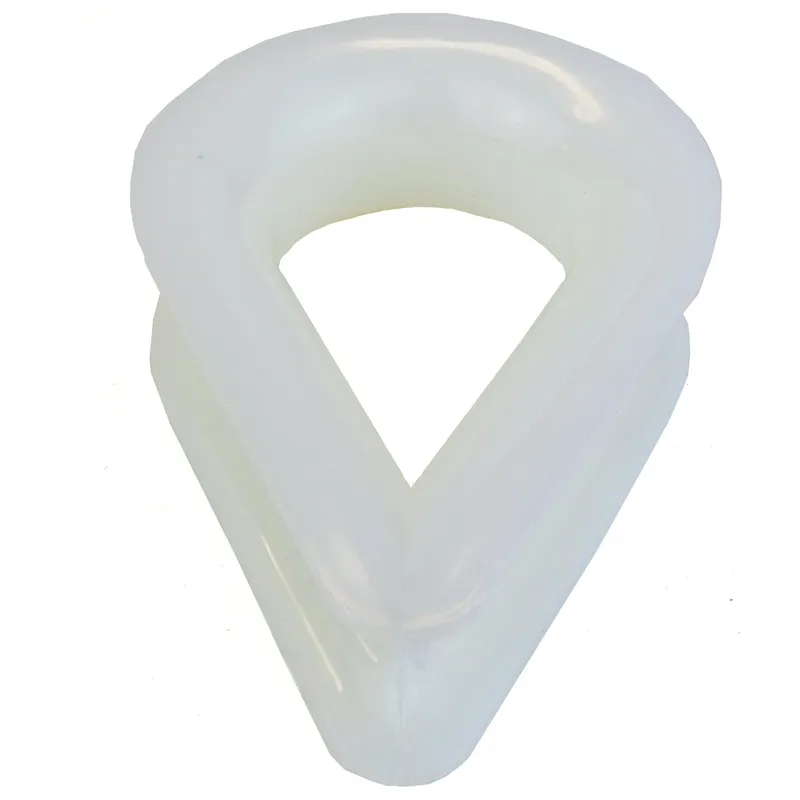

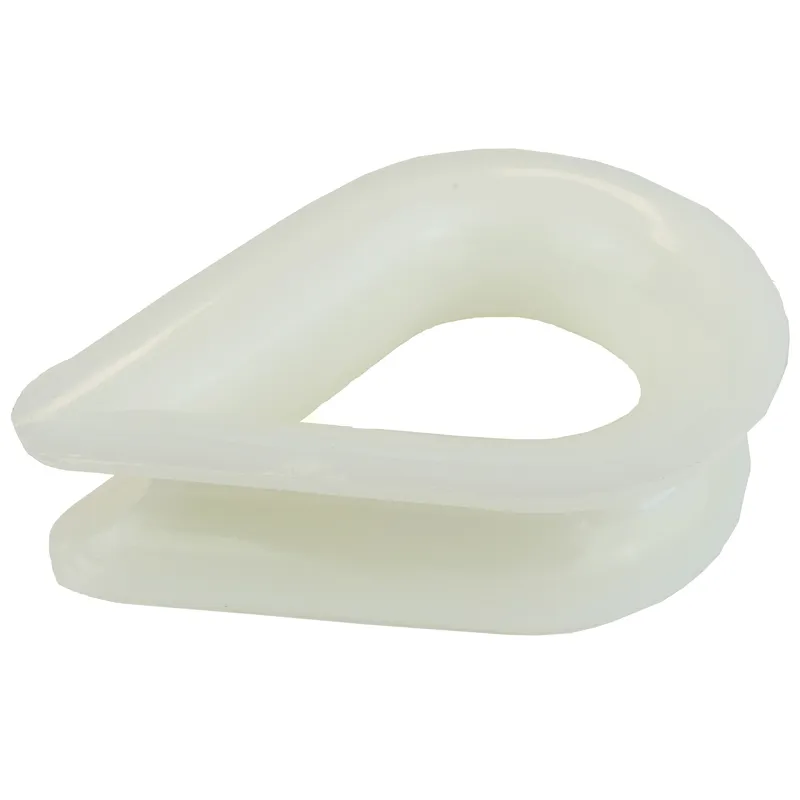

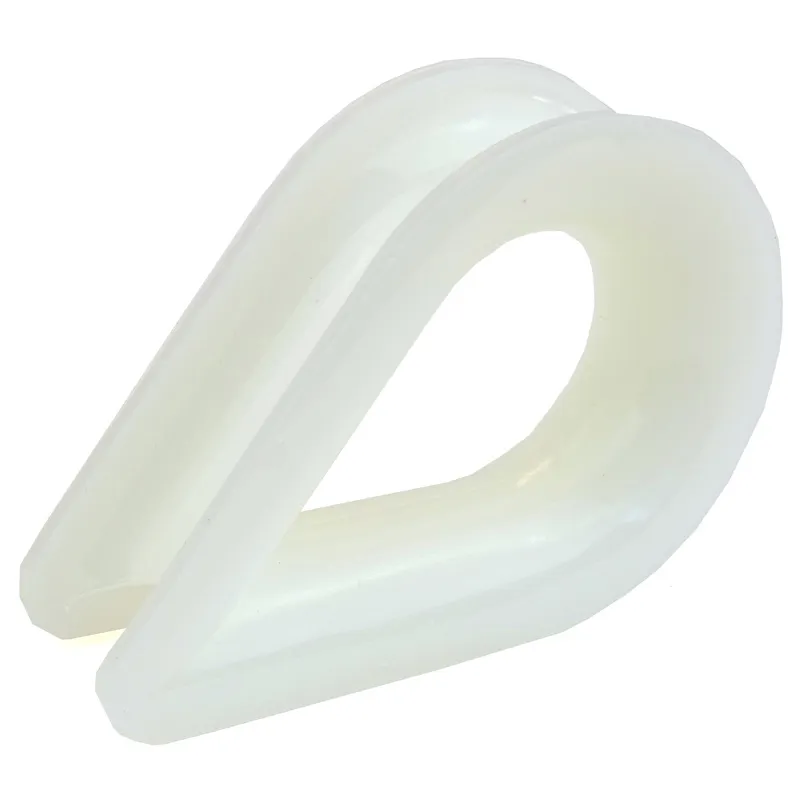

Polyamide thimble

Open, drop-shaped thimbles made of plastic.

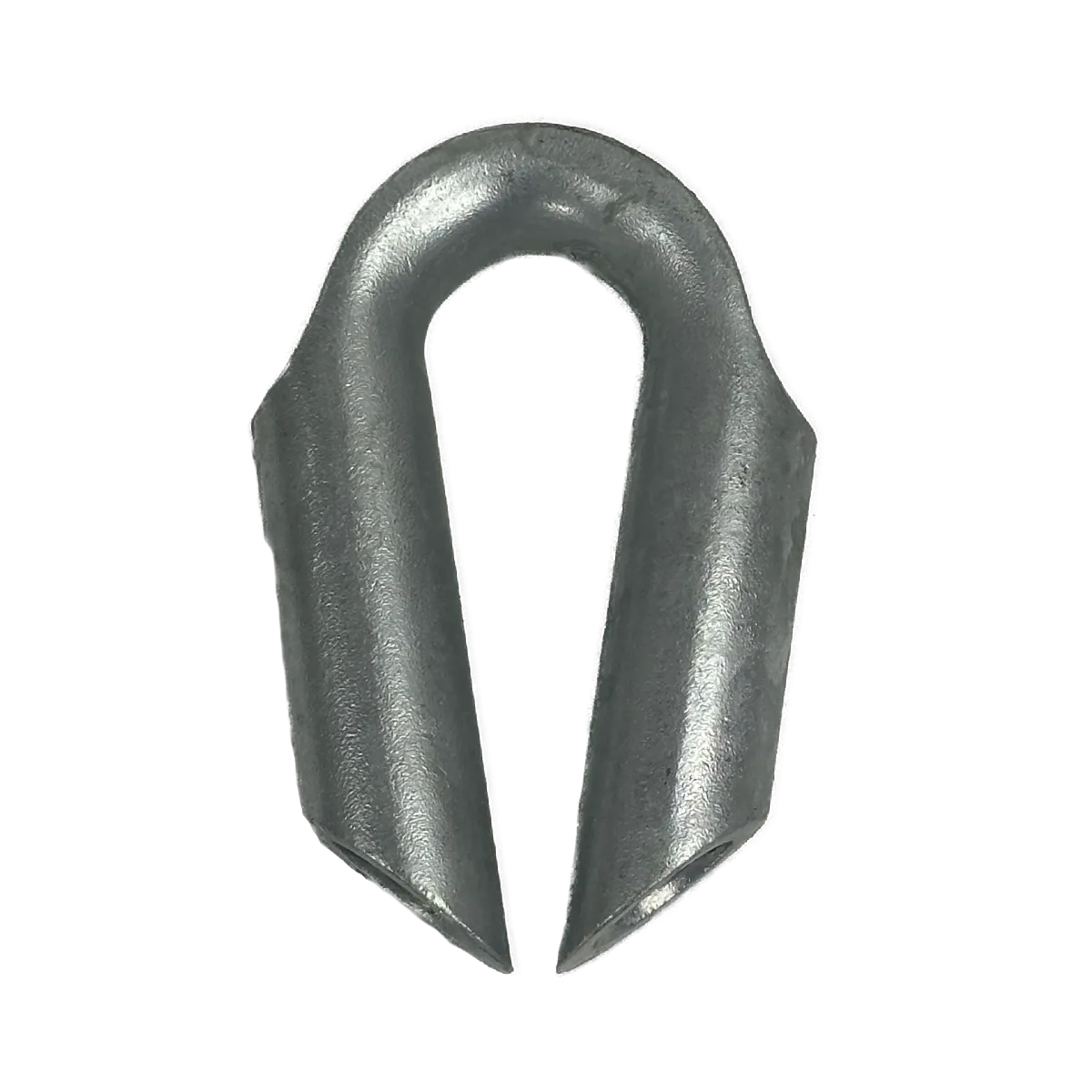

Tube thimble - galvanized

Closed tube thimbles made of galvanized steel.

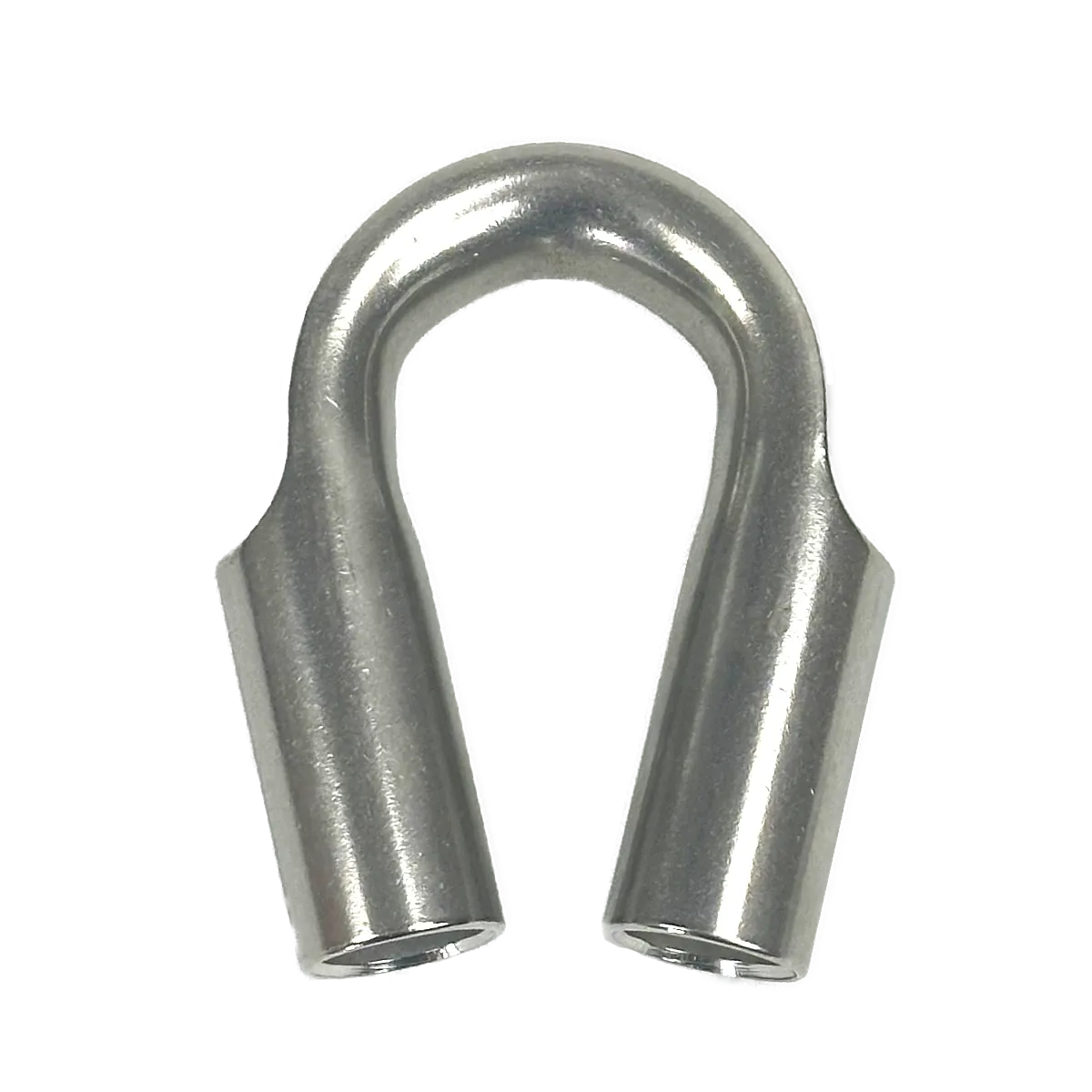

Tube thimble - stainless steel

Closed tube thimbles made of stainless steel.

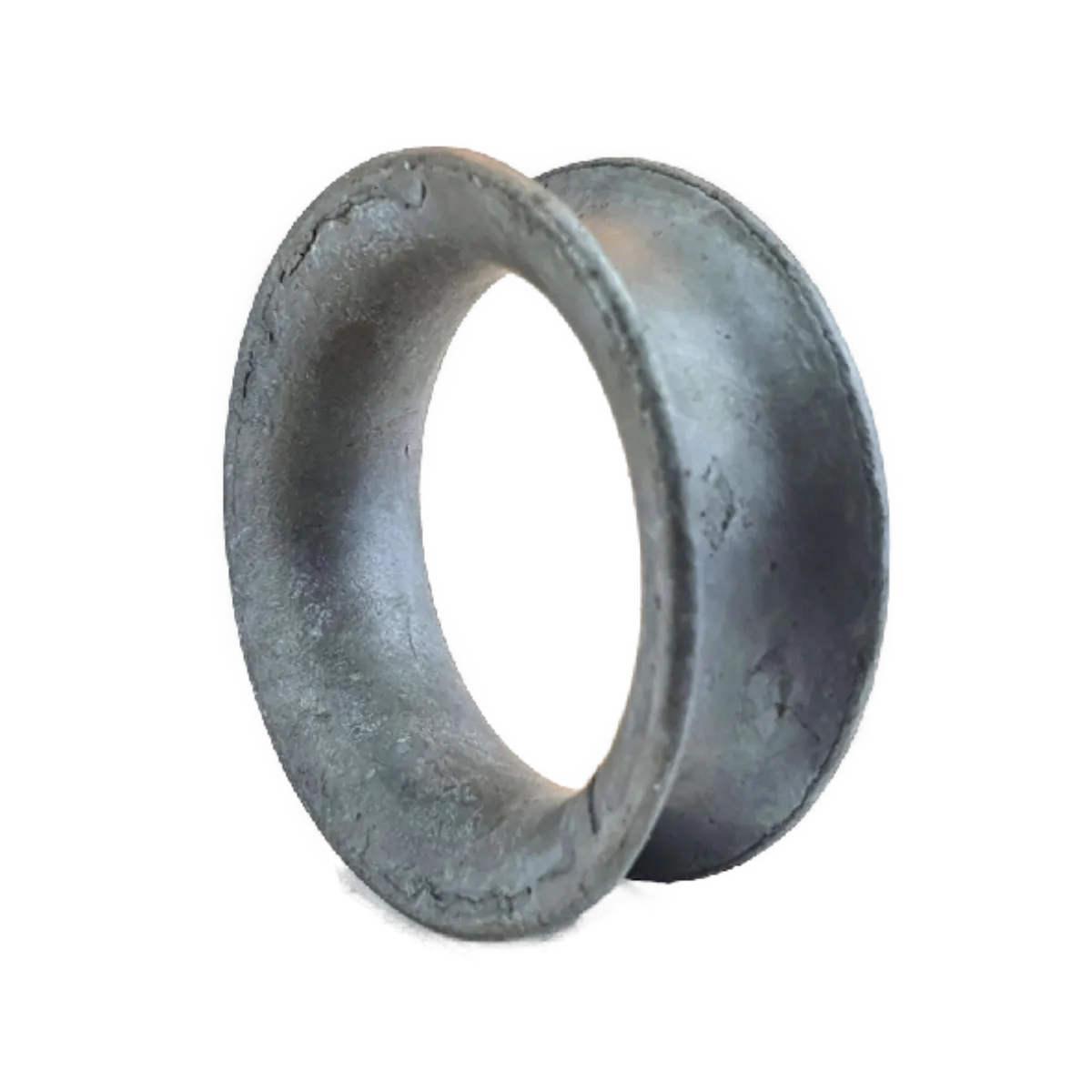

Round thimble - galvanized

Open round thimbles made of galvanized steel.

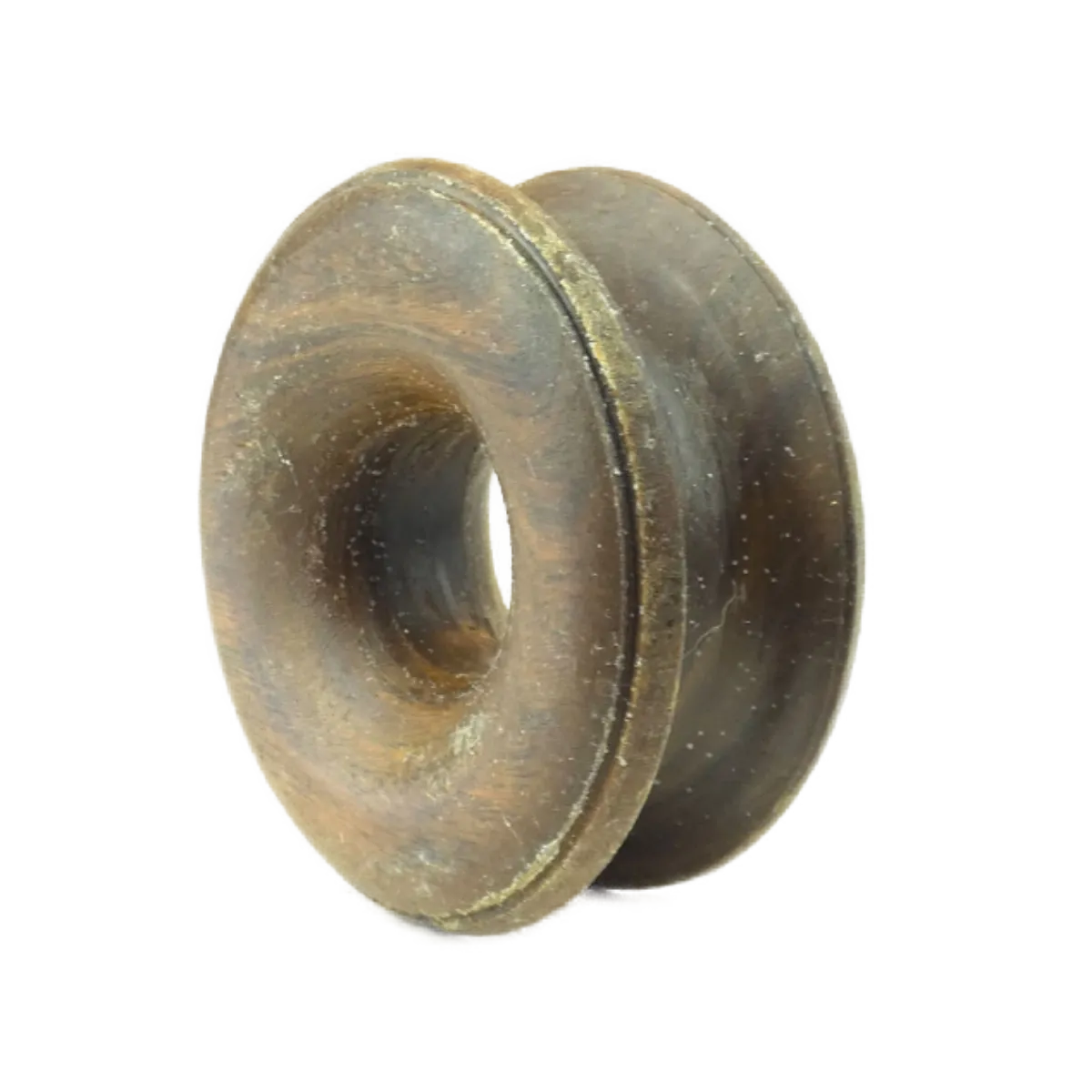

Round thimble - wood

Open round thimbles made of wood.
